Hagihara Industries INC
Semi-automatic Duplex Turret Slitter Rewinder Model: SDT-926
Main Use: Various Plastic films.- The duplex turret system offers less than 40 seconds changeover time.
- Rewinding shafts are Air Friction type with 2 air circuit. .
- One is for tension control and the other one is for core chucking. .
- Edge winding units are installed 2 units for each edge. .
- Automatic web cut off and splicing web to new core. .
Specifications:
| Web width | 400 - 1200mm |
|---|---|
| Roller width | 1300mm |
| Unwinding dia. | φ1000mm |
| Unwinding core size | 3/6 inches |
| Rewinding dia. | φ600mm |
| Rewinding core size | 3 inches |
| Min. rewinding width | 90mm (50mm as an option) |
|---|---|
| Slitting method | Razor in air slitting Razor in groove slitting Wrap shear slitting |
| Rewinder design | Duplex turret system |
| Mechanical speed | 600m/min |

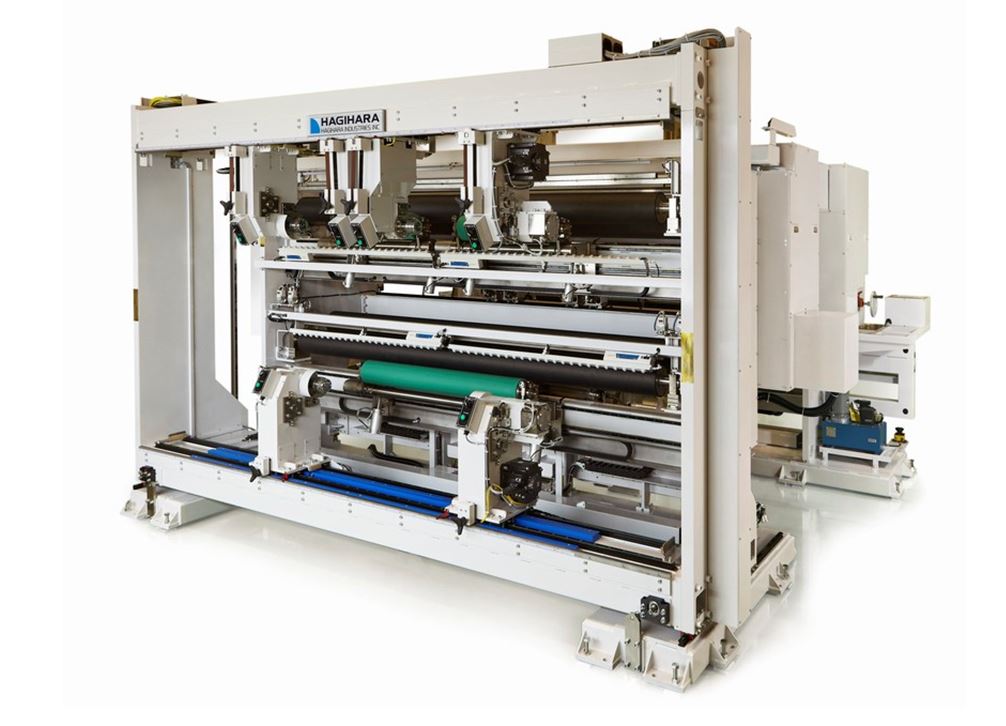

SECTIONAL DRIVE SLITTER REWINDER Shaftless Center Drive Slitter Rewinder Model:HTH-928
Main Use: PET, Metalized film, Optical film.- The sub-frame moves horizontally relative to the rewinding unit.
- The rewinding unit.
- Max. speed 800m/min. and stable tension control by dancer roller.
- 2 units of trimming winders are installed. Traverse winding and record winding are selectable.
- Individual shear blade unit that blade depth/Side pressure/Velocity ratio of upper blade can be managed individually in numerical values.
| Web width | 800 - 2900mm |
|---|---|
| Roller width | 3000mm |
| Unwinding dia. | φ1000mm |
| Unwinding core size | 3/6 inches |
| Rewinding dia. | φ800mm |
| Rewinding core size | 3/6 inches |
| Min. rewinding width | 450mm (3 stations) |
| Razor in air slitting | |
| Slitting method | Tangent shear slitting |
| (By individual blade unit) | |
| Mechanical speed | 800m/min. |
| Options | Product receiver |
| Blade unit with dust countermeasure |
