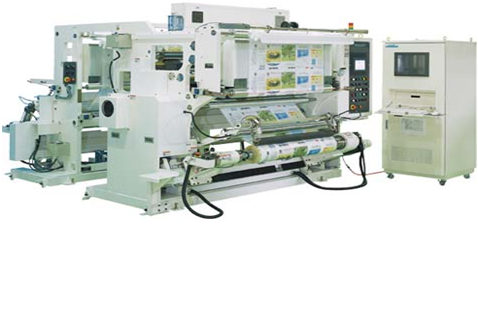

Single and Both sides Inspection Rewinder


Main Use: Printed film for flexible packaging.

Main Features:
  • Possible to detect the defect on both sides of printed film in one operation.
  • Near roller is installed to reduce the wrinkle from beginning to end of rewinding.
  • It can be equipped various Inspection camera as an option.
Web width 500 - 1200mm Rewinding dia. φ800mm
Roller width 1300mm Rewinding core size 3/6 inches
Unwinding dia. φ800mm Mechanical speed 300m/min.
Unwinding core size 3/6 inches Touch pressure setting By regulator
*Specifications can be customized according to your requirement
