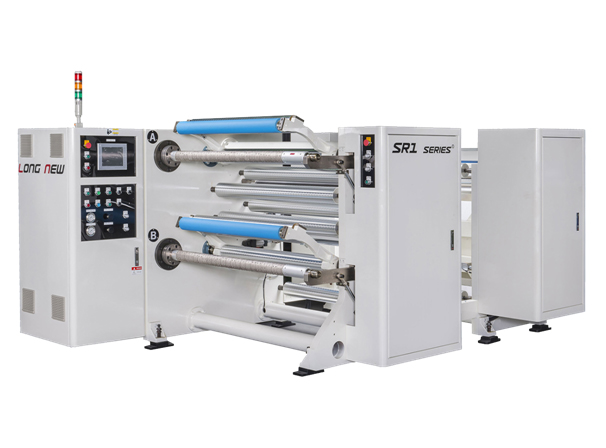

Features:
- This model is designed to meet the production requirement of the packaging and printing industry. Suited for various types of printed and laminated materials.
- Unwinding is equipped with air brake allows more stable tension.
- 3” differential air shafts equipped at rewinding side with pre-set taper tension to ensure top quality of rewinding. Optional 6” expansion air shafts with load cell type of tension control are also available for wide web rewinding jobs.
- Easy 3" & 6" changeover at unwinding.
- Rewinding is equipped both individual lay-on rollers and one-piece main lay-on roller to suit for all kinds of production conditions.
- Edge trimming rewinder is available as an option.
Specifications:
| Model | LN-SR2 |
|---|---|
| Max web width | 1000mm/1300mm |
| Max machine speed | 400 m/min |
| Max. slitting speed | 400m/min |
| Max. unwind dia. | 800mm |
| Min. rewind dia. | 600mm |
| Min. rewind width | 50mm |
| Min. rewind width (option) | 25/30/40mm |
Inspection & Rewinding Machine:
Features:
- Designed for high-speed inspecting and rewinding.
- Hydraulic lifter for unwinding & rewinding.
- Shaftless chucking system at unwinding & rewinding with quick 3" & 6" change-over.
- Full cover inspection board with splicing table.
- Auto reverse to defective positions.
- Option: 100% defect inspection system.
- Option: Trim edge device.
Specifications:
| Model | LN-IA |
|---|---|
| Max. web width | 1000 mm / 1300 mm |
| Max. machine speed | 300 m /min |
| Max. inspection speed | 300 m / min |
| Max. unwind dia. | 800 mm / 1000 mm (option) |
| Max. rewind dia. | 800 mm / 1000 mm (option) |
| Applicable web type | Printed and laminated material |
