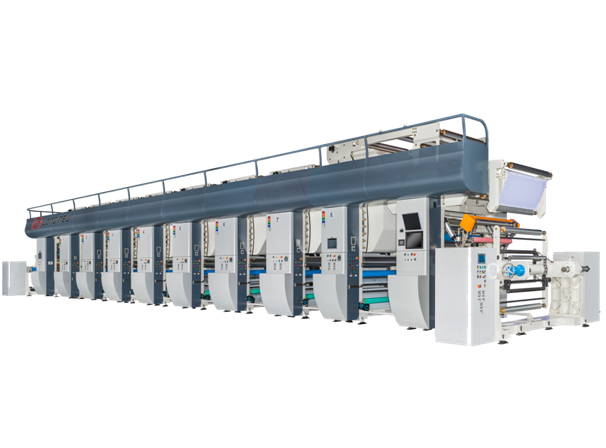

LONG NEW INDUSTRIAL
Features:
- GPX is designed for high-speed production output. (Machine speed :450 m/min )
- Shaftless type unwinding and rewinding.
- Constant unwind tail length web splicer, greatly reduce wastage.
- Inverter controlled turret arm rotation.
- Ink pan tilting device allows easier ink removal after printing.
- Fully automatic splicing without manual intervention.
- Ink furnisher roller equipped to prevent ink splash and greatly enhance the printing quality of half tone colours.
- Sleeve type impression roller.
- Trolley system is equipped for fast job change.
Specifications:
| Model | LN-GPX |
|---|---|
| Max web width | 1000mm/1300mm |
| Max machine speed | 450 m/min |
| Max cylinder width | 1100 mm/ 1350mm |
| Available cylinder dia. | 127-287 mm |
| Max unwind Dia | 800 mm /1000 mm (option) |
| Max rewind dia. | 800 mm |

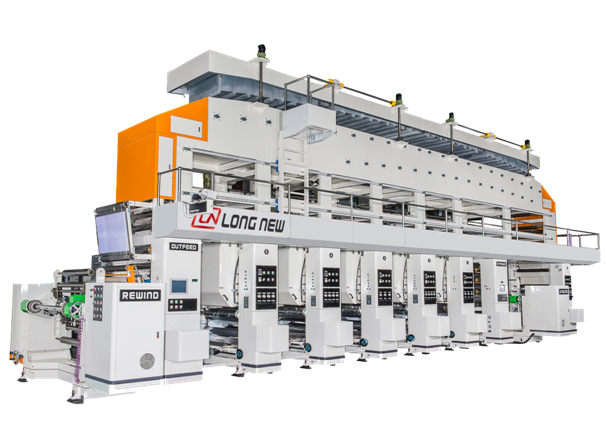

GRAVURE PRINTING PRESS (FOR ALUMINIUM):
Features:
- Eliminating troublesome operational control, this machine employs a PLC controller for userfriendly.
- Empolys double-shaft turret type unwind and rewind, web discharging and splicing can be automatically performed while high speed running
- The single side circulation system on the drying system greatly increase drying performance, reduces operation line length, and minimizes defect ratio
- Pneumatically operated printing cylinder clamping design saves change time, upgrades efficiency, and features a high positioning registration accuracy
Specifications:
| Model | LN-GAL |
|---|---|
| Kinds of web | Aluminium foils |
| Max. web width | 800 mm / 1000 mm / 1200 mm |
| Max. machine speed | 200 m / min |
| Available cylinder diameter | 127 ~ 287 mm |
| Max. unwinding diameter | 800 mm |
| Max. Rewinding diameter | 800 mm |
