WATER VAPOR TRANSMISSION RATE (WVTR) / WATER VAPOR PERMEABILITY ANALYZER
With a high percentage of APIs sensitive to moisture, the moisture-barrier characteristic of pharmaceutical packaging is gaining greater prominence.
Water Vapor Transmission Rate (WVTR) is the rate at which water vapor will permeate through solid material over a specific period of time.
WVTR MAIN PRODUCT
W301
W301 WVTR is based on the test principle of the gravimetric method (weight loss), and is developed, designed, and manufactured in accordance with GB/T 1037, ASTM E96 and other standards.

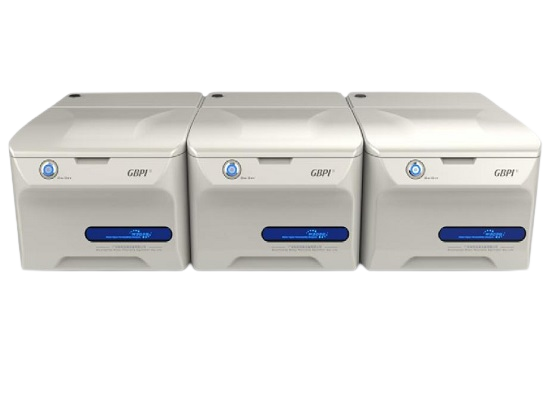

W303
The W303 WVTR tester is designed and produced based on the test principle of weight method (weight reduction) and as per the standards of GB/T 1037 and ASTM E96, etc.

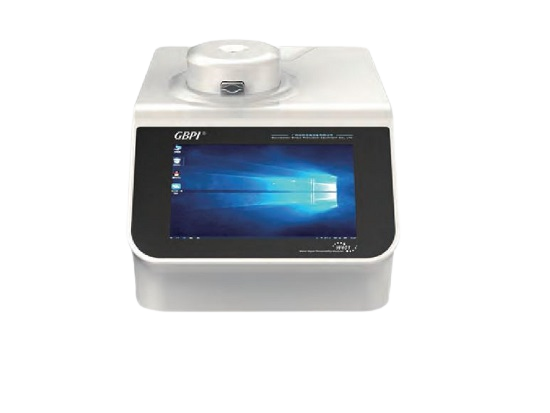

W401
W401 2.0 Water Vapor Transmission Rate Tester is designed and manufactured according to GB/T 26253 standard, based on the test principle of infrared moisture analysis sensor,...

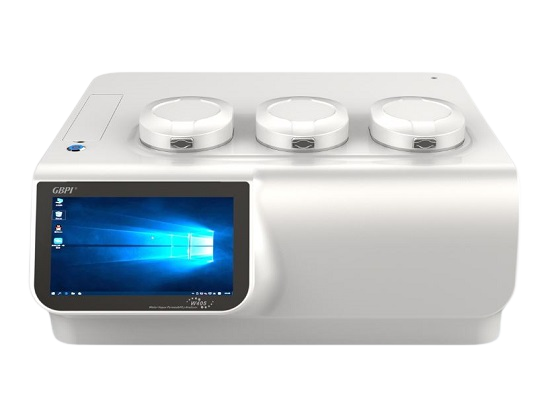

W413
W413 2.0 Infrared Water Vapor Transmission Rate Tester is a high-end precision packaging material testing instrument based on ASTM and GB standard requirements and market demand.
OXYGEN TRANSMISSION RATE (OTR) / OXYGEN PERMEABILITY ANALYZER
Oxygen transmission rate (OTR) is the rate at which oxygen molecules traverse through a solid material over a given time period.
OTR MAIN PRODUCT

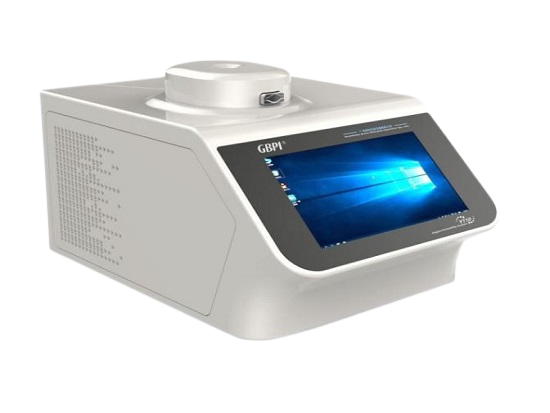

Y110
This product is based on the testing principle of the coulometric sensor method testing Oxygen and is designed and manufactured with reference to GB/T 19789, ASTM D3985 and other standards.

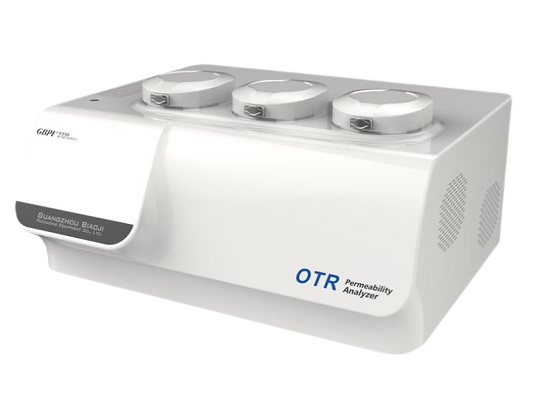

Y310
Y310 Oxygen Permeability Analyzer is designed and manufactured based on the coulometric sensor method and conforms to GB/T 19789,...
COEFFICIENT OF FRICTION TESTER (COF)
The coefficient of friction (COF) tester is designed to measure the static and kinetic coefficients of friction of plastic film, sheeting, and similar materials.
COF MAIN PRODUCT

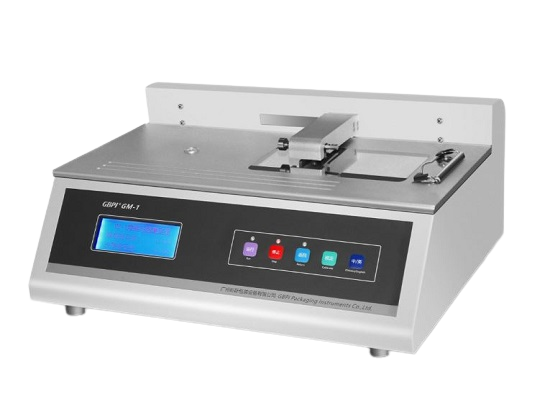

GM-1
This instrument can test the coefficient of friction of plastic film, thin sheet, paper and so on. It is applied to quality inspection organizations, drug control institutions...

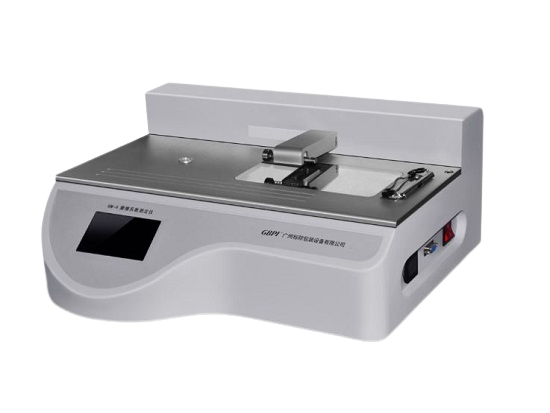

GM-4
This instrument can test the coefficient of friction of plastic film, thin sheet, paper and so on. It is applied to quality inspection organizations, drug control institutions, research institutes...
GM-6
This instrument can test the coefficient of friction of plastic film, thin sheet, paper and so on. It is applied to quality inspection organizations, drug control institutions, research institutes...
FACE MASK TESTER (PFE)
GB- KF30010
It is to test the filtering efficiency of particulate protective masks and medical masks and to determine the resistance of ordinary fabrics and medical protective masks to the constant flow of airflow.
FEATURES
- Using a cold aerosol generator to produce continuous and stable aerosol particles, convenient for filling the solution.
- Measurement of aerosol concentration using a high-precision PM2.5 sensor.
- Anti-leakage design of whole particles to protect the safety of laboratory personnel.
- 2 sets of Aerosol generator：Salty aerosol generator and oily aerosol generator.
- Equipped with aerosol particle neutralization device.
- The pneumatic clamp is equipped with a protection device, which is safe and convenient to use.
- Configure temperature and humidity sensor, real-time display of ambient temperature and humidity（Temperature and humidity requirements：25℃±5℃， 30%RH±10%RH)
- Equipped with glass rotor flowmeter, vacuum pump, laser dust particle counter.
- Control system: The computer controls the test process, automatically collects data, and configures a special computer and test software.
| Item | Specification |
|---|---|
| Test range | 0-99.999% |
| Flowmeter range | (10-100)L/min,) |
| Sampling frequency | 1-9999/min |
| Particle concentration | (0.001-200)mg/m3) |
| Counting median diameter | Salt particles(0.075±0.02)μm、Oil particles (0.185±0.02)μm |
| Geometric standard deviation of particle size distribution | Salt particles≤1.86、Oil particles≤1.60 |
| Dynamic detection range | 0.001-100 mg/m3,accuracy1% |
| Dimension | 460mm×525mm×1430mm |
| Power supply | AC 220V,50Hz |
| Differential pressure sensor range | 0~500Pa |
