Fuji Kikai Kogyo
Lithium-ion Battery Applications

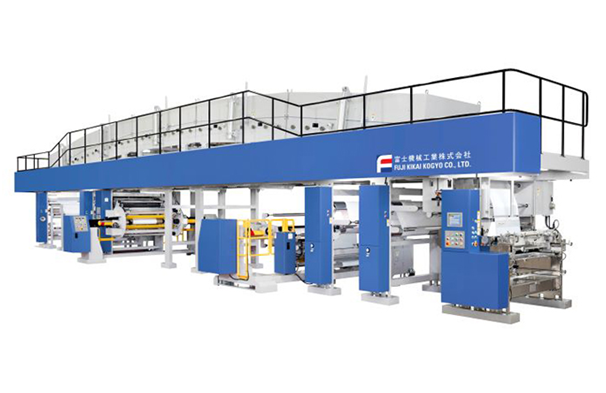

C7-130-2:
“Equipment that can perform sequential dual-side coating! Equipped with a low-floor type dryer for compact design”
Equipment for achieving dual-side coating on a separator with heat-resistant material such as aluminum oxide. This machine thoroughly pursues advanced operation rates and loss reduction.
| Applications | For lithium-ion battery coating separators (dual-side) |
|---|---|
| Coating method | Rotogravure kiss reverse method |
| Doctor method | Chamber doctor method |
| Implementation results | Lithium-ion battery market |
| Options | Supports installation of film thickness meters, inspection devices, and the like. |
| Machine speed | Max. 150 m/min |
| Material width | Max. 1,200 mm |
| Drying temperature | Max. 100°C |

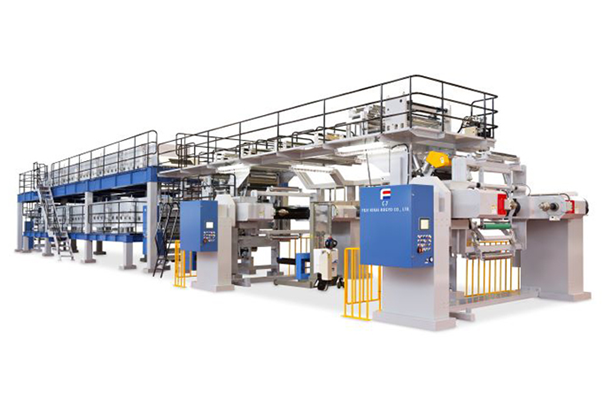

C7-085:
“Here is the sequential dual-side coater. This machine can coat the positive pole with a thin film of conductive material at high speed and successfully reduce loss”
Equipped with two coating heads and a dryer, this machine supports dual-side coating. The dryer is a low-floor type.
| Applications | For positive pole aluminum foil dual-side undercoating |
|---|---|
| Coating method | Can perform the rotogravure kiss reverse method, stripe coating, and front/reverse surface positioning. |
| Doctor method | Chamber doctor method |
| Implementation results | Lithium-ion battery market |
| Options | Supports installation of corona treatment devices. |
| Machine speed | Max. 150 m/min |
| Material width | Max. 750 mm |
| Drying temperature | Max. 150°C |
